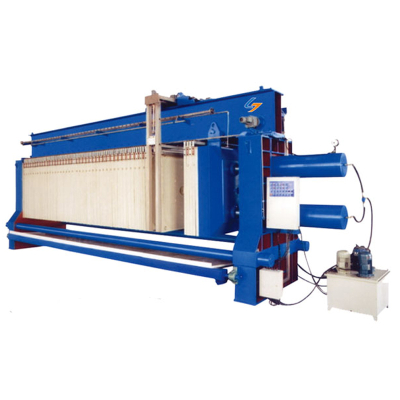

Shanghai press filter is a diaphragm filter press, plate and frame filter press, box filter press and box type filter press credit quality is good, and engaged in chemical machinery research, design, manufacture. Have all kinds of precision machining and cold processing equipment, and filter press solid-liquid separation equipment.
Automatic cleaning device
Is installed in the filter press filter plate beneath a device for cleaning the filter cloth, the device by the mobile cleaning frame and the swinging motion of the rod and the composition of high pressure cleaning pump, cleaning filter cloth is carried out at the end of the discharge, or several cleaning after work cycle time, by cleaning the nozzle injection of high pressure water cleaning. Pendulum rod cleaning mechanism design, novel structure, good cleaning effect and realize the filter plate beneath the cleaning, swinging rod in the length of the cleaning of high pressure mist is composed of nozzle, action, accurate positioning and smooth operation, swing speed even, clean surface, two faces, one can wash clean pressure always stay in 1 mpa. All closed without unattended.
Filter cloth qu Zhang Zhen institutions
The herringbone linkage respectively installed on both sides of the filter plate upper parts, filter cloth by connecting bar, springs, hook type linkage connected with people, such as through the tension spring, discharge, due to the filter plate, filter cloth in people word body vibration, help mud cake peeling off from the filter plate. The whole process without external force and the artificial site operation. As small steel ash wastewater in the solid particle size, viscosity, mud cake not easy peeling off, the varicose institutions fully apply steel dust filtration of wastewater.
Automatic flap system
It is to install a set of hydraulic device at the bottom of the filter plate, when the pressure filter in the feed, below the filter plate part of the liquid leakage, inflow flap after water pan is (automatic) on both sides of the downstream to the filter press, through collecting liquid tank into the pool, the main advantage is that liquid into not filtered solid materials. For brine filtration, more save brine, reduce costs, improve efficiency. Better when flush filter cloth, lotion can concentrate flow, reduce the labor intensity of workers, and better protect the operating environment.
Automatic control principle: it is 4.8 r/min, by low speed motor through coupling drive frame water pan is (to be automatic), by the part of the electrical appliances and the induction switch efficiency water pan is (automatic) automatically open and close.
Hydraulic drive jewels bucket
Using 8 mm thick high quality Q235 plates welded together, by the hydraulic oil cylinder (single double oil cylinder piston rod drives the fan gate closed, open, when discharging fan door closed, centralized storage convenience of trucks, the overall high mechanical strength, no card when unloading material, store mud without leakage. After using the environment is good, low labor intensity.
Automatic control mode: the hydraulic pressure system control, through the electromagnetic directional valve in always achieve fan-shaped door opening and closing, electric control system adopts relays to control the circuit, with reliable performance, the characteristics of the security and stability.
